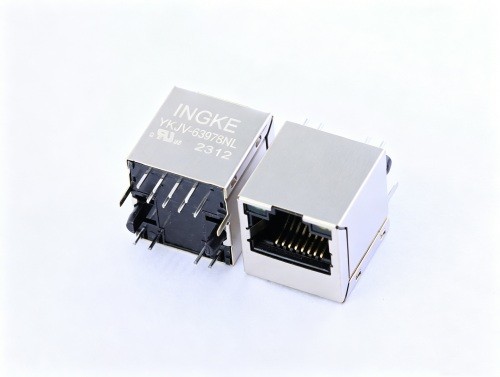

INGKE YKJV-63978NL 1663978 Phoenix

INGKE YKJV-63978NL 100% cross 1663978 Phoenix

Part No.: 1663978 Phoenix

INGKE Part No.: YKJV-63978NL

Made in China: INGKE Technology

Description: 1663978 Phoenix 1 Port RJ45 Through Hole 10/100 Base-TX, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Part Status:Active
Connector Type:RJ45
Number of Ports:1
Number of Rows:1

Applications:10/100 Base-TX, AutoMDIX

Mounting Type:Through Hole
Orientation:Vertical
Termination:Solder
Height Above Board:0.661" (16.80mm)
LED Color:Green - Yellow
Number of Cores per Jack:4
Shielding:Shielded
Features:Board Guide
Tab Direction:User Selectable
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40°C ~ 85°C
Contact Finish Thickness:30.0µin (0.76µm)
Shield Material:Copper Alloy
Housing Material:Liquid Crystal Polymer (LCP)
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
