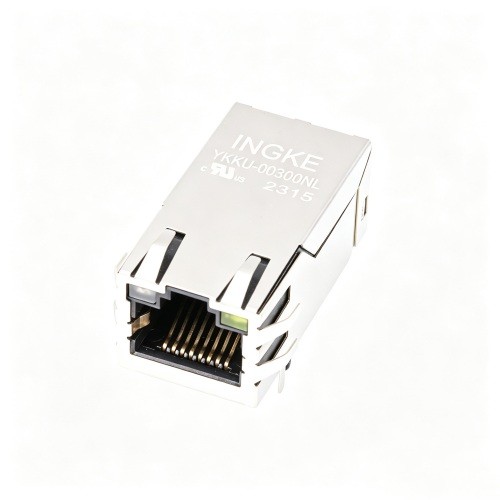

INGKE YKKU-00300NL ARJE-0030 Abracon

INGKE YKKU-00300NL 100% cross ARJE-0030 Abracon

Part No.: ARJE-0030 Abracon

INGKE Part No.: YKKU-00300NL

Made in China: INGKE Technology

Description: ARJE-0030 Abracon 1 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Number of Ports:1
Number of Rows:1

Applications:10/100/1000 Base-T, AutoMDIX
Tab Direction:Up
Features:Board Guide
LED Color:Green, Orange - Yellow

Orientation:90° Angle (Right)
Termination:Solder
Mounting Type:Through Hole

Shielding:Shielded, EMI Finger

Temperature:0°C ~ 70°C

Number of Cores per Jack:8

Contact Material: Phosphor Bronze

Contact Finish:Gold

Height Above Board:0.541" (13.75mm)

Housing Material: Liquid Crystal Polymer (LCP)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
