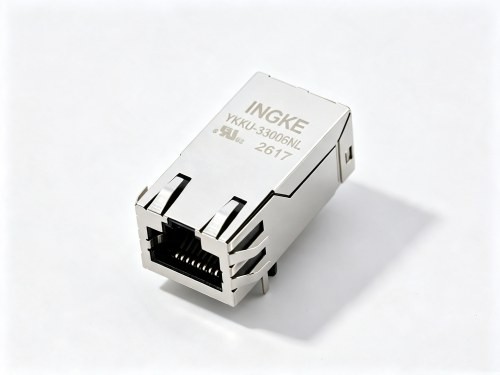

INGKE YKKU-33006NL 0857933006 Molex

INGKE YKKU-33006NL 100% cross 0857933006 Molex

Part No.: 0857933006 Molex

INGKE Part No.: YKKU-33006NL

Made in China: INGKE Technology

Description: 0857933006 Molex 1 Port RJ45 Through Hole AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.546" (13.87mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature:-40°C ~ 85°C
Shield Material: Stainless Steel

Contact Finish Thickness:30.0µin (0.76µm)
Housing Material: Polybutylene Terephthalate (PBT)
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
