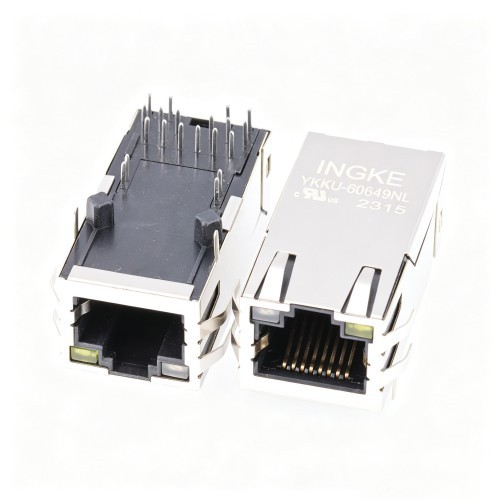

INGKE YKKU-60649NL TMJK6064A9NL Taoglas

INGKE YKKU-60649NL 100% cross TMJK6064A9NL Taoglas

Part No.: TMJK6064A9NLTaoglas

INGKE Part No.: YKKU-60649NL

Made in China: INGKE Technology

Description: TMJK6064A9NL Taoglas 1 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1
Applications:1G Base-T, AutoMDIX
LED Color:Yellow, Green - Green
Shielding:Shielded, EMI Finger
Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder

Height Above Board:0.531" (13.50mm)

Number of Cores per Jack:8
Operating Temperature:-40°C ~ 80°C
Contact Material: Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)

Housing Material:Polybutylene Terephthalate (PBT), Glass Filled

Shield Material:Brass, Copper Alloy

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
