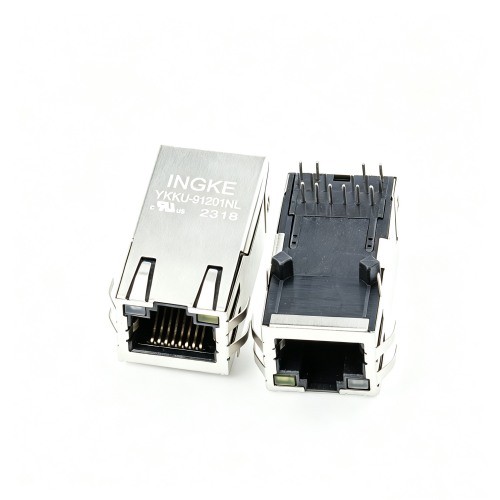

INGKE YKKU-91201NL 2489120-1 TE

INGKE YKKU-91201NL 100% cross 2489120-1 TE

Part No.: 2489120-1 TE

INGKE Part No.: YKKU-91201NL

Made in China: INGKE Technology

Description: 2489120-1 TE 1 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45

Tab Direction:Up

LED Color:Green - Green

Applications:10/100/1000 Base-T, AutoMDIX

Number of Ports:1
Number of Rows:1

Shielding:Shielded, EMI Finger

Height Above Board:0.535" (13.59mm)

Mounting Type:Through Hole

Features:Board Guide

Orientation:90° Angle (Right)

Termination:Solder

Number of Cores per Jack:8
Contact Material: Phosphor Bronze

Contact Finish Thickness:50.0µin (1.27µm)

Contact Finish:Gold

Housing Material: Polyamide (PA46), Nylon 4/6, Glass Filled

Operating Temperature:-40°C ~ 85°C

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
