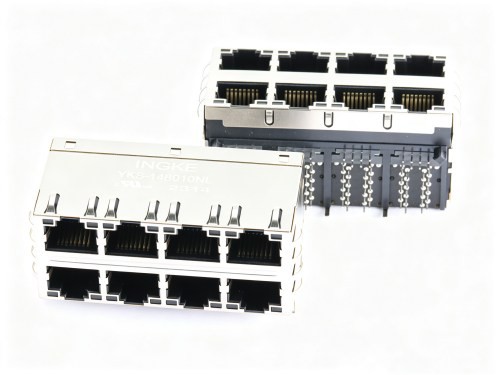

INGKE YKS-148010NL G14-88NV-010 Bel

INGKE YKS-148010NL 100% cross G14-88NV-010 Bel

Part No.: G14-88NV-010 Bel

INGKE Part No.: YKS-148010NL

Made in China: INGKE Technology

Description: G14-88NV-010 Bel 8 Port RJ45 Through Hole 10G Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type:RJ45
Number of Ports:8
Number of Rows:2
Applications:10G Base-T, AutoMDIX
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Height Above Board:1.165" (29.59mm)
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide, Light Pipe
Tab Direction:Up and Down
Contact Finish:Gold
Operating Temperature:-40°C ~ 85°C
Contact Finish Thickness:50.0µin (1.27µm)
Shield Material:Copper Alloy
Housing Material:Polybutylene Terephthalate (PBT)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
