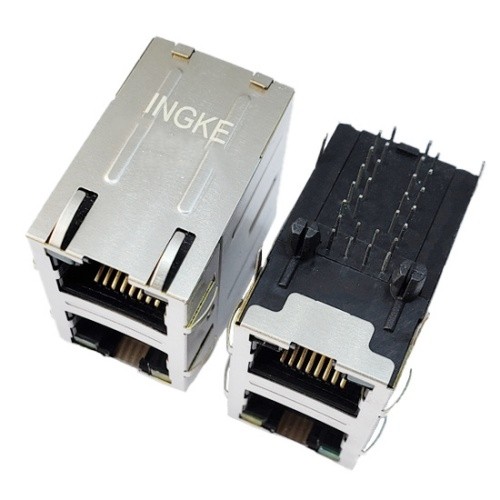

INGKE YKS-22404NL 224539-0004 Molex

INGKE YKS-22404NL 100% cross 224539-0004 Molex

Part No.: 224539-0004 Molex

INGKE Part No.: YKS-22404NL

Made in China: INGKE Technology

Description: 224539-0004 Molex 2 Port RJ45 Through Hole 1G Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Part Status:Active
Connector Type:RJ45
Number of Ports:2
Number of Rows:2
Applications:1G Base-T, AutoMDIX
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Height Above Board:1.015" (25.79mm)
LED Color:Green, Yellow - Green, Yellow
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide, Solder Retention
Tab Direction:Up and Down
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40°C ~ 85°C
Contact Finish Thickness:30.0µin (0.76µm)
Shield Material:Brass

Housing Material:Liquid Crystal Polymer (LCP)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
