INGKE YKS-54215NL G54-2NNC-143E-L Bel

INGKE YKS-54215NL 100% cross G54-2NNC-143E-L Bel

Part No.: G54-2NNC-143E-L Bel

INGKE Part No.: YKS-54215NL

Made in China: INGKE Technology

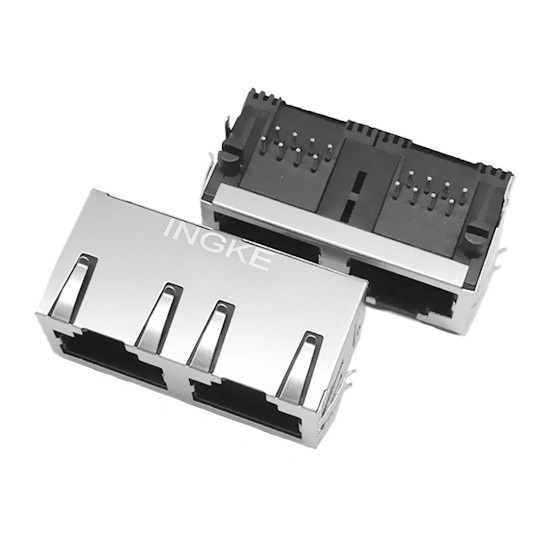

Description: G54-2NNC-143E-L Bel 2 Port RJ45 Through Hole 10G Base-T, AutoMDIX

MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type:RJ45

Number of Ports:2
Number of Rows:1

Applications:10G Base-T, AutoMDIX

Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Height Above Board:0.456" (11.58mm)
LED Color:Does Not Contain LED
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Up and Down
Contact Material:Copper Alloy
Contact Finish:Gold
Operating Temperature:0°C ~ 85°C
Contact Finish Thickness:50.0µin (1.27µm)
Shield Material:Stainless Steel
Housing Material:Polyamide (PA), Nylon
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
