INGKE YKSD-18053NL ARJM11B1-805-KB-CW2 Abracon

INGKE YKSD-18053NL 100% cross ARJM11B1-805-KB-CW2 Abracon

Part No.: ARJM11B1-805-KB-CW2 Abracon

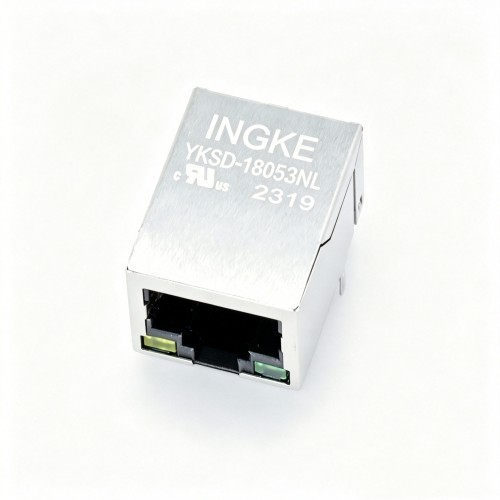

INGKE Part No.: YKSD-18053NL

Made in China: INGKE Technology

Description: ARJM11B1-805-KB-CW2 Abracon 1 Port RJ45 Through Hole 2.5G Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Down

Number of Ports:1
Number of Rows:1

Applications:2.5G Base-T, AutoMDIX
LED Color:Green, Orange - Yellow

Number of Cores per Jack:8
Shielding:Shielded

Height Above Board:0.535" (13.59mm)

Features:Board Lock
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:0°C ~ 70°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
