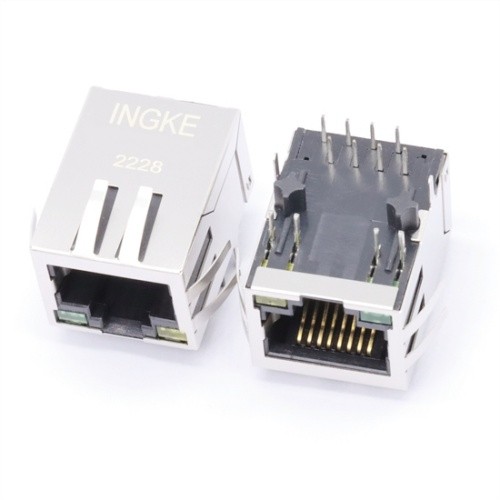

INGKE YKSD-7318800NL RJE7318800451 Amphenol

INGKE YKSD-7318800NL 100% cross RJE7318800451 Amphenol

Part No.: RJE7318800451 Amphenol

INGKE Part No.: YKSD-7318800NL

Made in China: INGKE Technology

Description: RJE7318800451 Amphenol Mod Jack 1 Port 8P8C Shielded Tabs

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded, EMI Fingers
Performance Category: Cat 6
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
IP Rating: IP20
Current Rating: 1 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 85 C
Color: Black
LED L / R Color: Green / Green
Tab Direction: Tab Down
Application: 1G/10G Base-T
Brand: Amphenol Commercial Products
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Flammability Rating: UL 94 V-0
Insulation Resistance: 500 MOhms
Mating Cycles: 750 Cycles
Number of Contacts: 8 Contact
Number of Ports: 1 Port
Number of Positions: 8 Position
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
