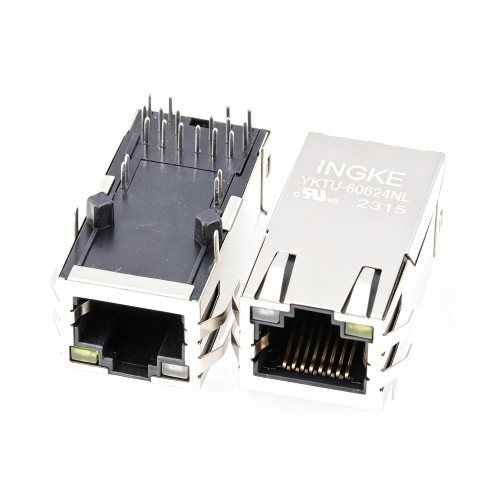

INGKE YKTU-60624NL TMJY606DYDZ4NL Taoglas

INGKE YKTU-60624NL 100% cross TMJY606DYDZ4NL Taoglas

Part No.: TMJY606DYDZ4NL Taoglas

INGKE Part No.: YKTU-60624NL

Made in China: INGKE Technology

Description: TMJY606DYDZ4NL Taoglas 1 Port RJ45 Through Hole 10G Base-T, AutoMDIX, Power over Ethernet (PoE)

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1

Applications:10G Base-T, AutoMDIX, Power over Ethernet (PoE)
LED Color:Green, Orange - Yellow

Number of Cores per Jack:8
Shielding:Shielded

Height Above Board:0.536" (13.61mm)

Features:Board Guide
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Operating Temperature:-40°C ~ 85°C

Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:30.0µin (0.76µm)
Shield Material:Brass
Housing Material:Thermoplastic

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
