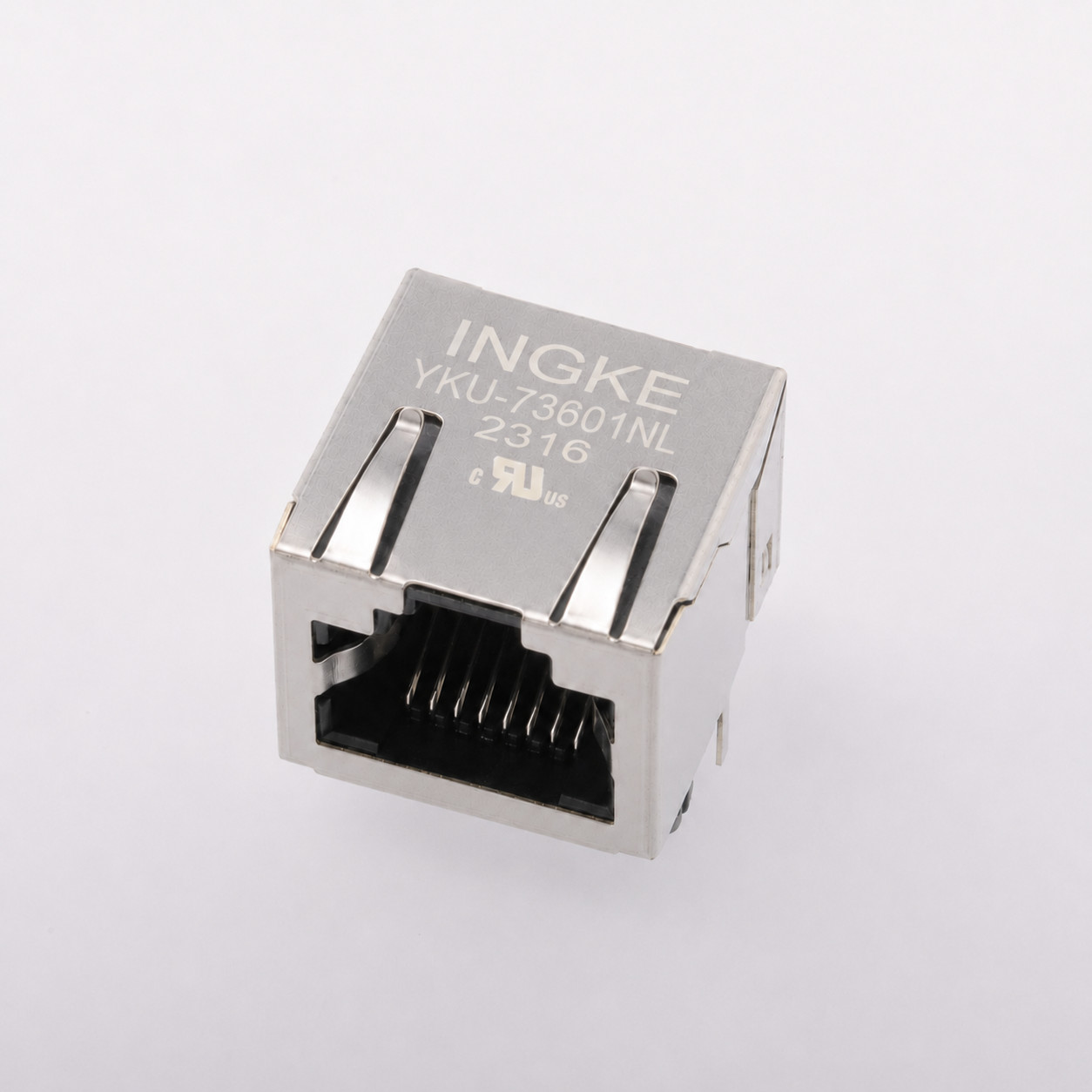

YKU-73601NL RJHSE-7360 Amphenol

INGKE YKU-73601NL 100% cross RJHSE-7360 Amphenol

Part No.: RJHSE-7360 Amphenol

INGKE Part No.: YKU-73601NL

Made in China: INGKE Technology

Description: RJHSE-7360 Amphenol Ethernet Connectors R/A RJ12 SHIELDED

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 6P6C
Shielding: Shielded, EMI Fingers
Performance Category: Cat 5
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
IP Rating: IP20
Current Rating: 1.5 A
Voltage Rating: 125 VAC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Tab Up
Application: 10/100 Base-T
Contact Material: Phosphor Bronze
Contact Plating: Gold
Flammability Rating: UL 94 V-0
Insulation Resistance: 500 MOhms
Mating Cycles: 750 Cycles
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
