YKJ-802414NL JX20-0114NL Pulse

Product Item : YKJ-802414NL INGKE
Category： 2x4 Ports RJ45 Connector
100Base-TX 2x4 Ports RJ45
Replace JX20-0114NL Pulse
INQUIRY EMAIL

Product Description:

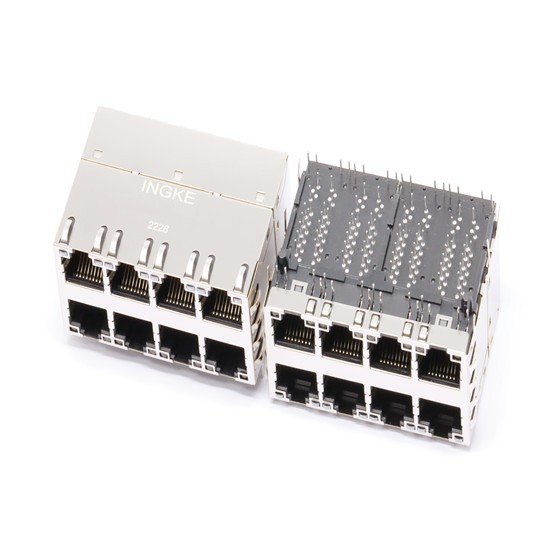

INGKE YKJ-802414NL 100% compatible with JX20-0114NL Pulse

Part No.: JX20-0114NL Pulse
INGKE Part No.: YKJ-802414NL
Made in China: INGKE Technology
Description: JX20-0114NL Pulse 100Base-TX 2x4 Ports RJ45 Integrated Connector Module
MOQ: 1PCS
Lead Time: within 1 week

Speed: 100BASE-TX
Latch: Tab Down and Tab Up
Number of Ports: 2x4 ports
LED: Green, Yellow - Green, Yellow
Shielding: Shielded, EMI Finger
PoE Rating: No POE
PCB Mount: Through Hole
Operating Temperature: -40°C ~ 85°C
Mating Cycle: 750
Contact Material: Phosphor Bronze
Contact Plating: 30µ" Gold
Plastic Housing Material: Thermoplastic LCP black
Plastic Housing Flammability: Rating UL94 V-0
Packaging: Tray
Categories: Connector, Interconnect, RJ45 Integrated Connector Module
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
Chinese UL factory for producing JX20-0114NL Pulse RJ45 Integrated Connector Module

Tags: JX20-0114NL Pulse，2x4 Ports RJ45，Pulse RJ45 Integrated Connector Module
