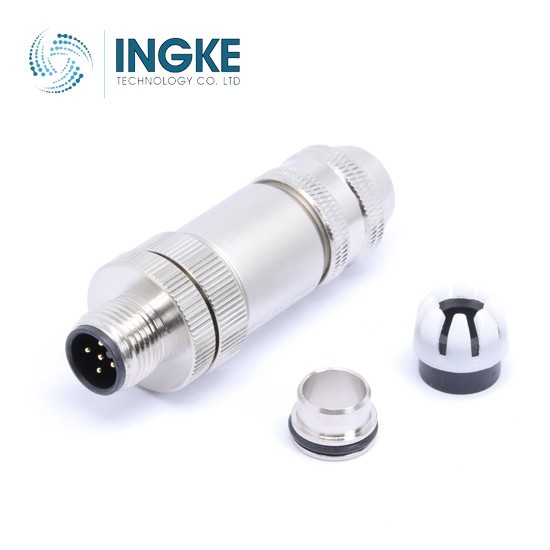

YKS12-M205AFNH M12P-5FA ORing

Product Description:
INGKE YKS12-M205AFNH 100% cross M12P-5FA ORing

Part No.: M12P-5FA ORing
INGKE Part No.: YKS12-M205AFNH
Made in China: INGKE Technology
Description: M12P-5FA ORing M12 Circular Connector
Lead Time: 1-2 Weeks

Connector Type: Plug, Male Pins
Number of Positions: 5
Number of Positions Loaded: All
Shell Size - Insert: M12-5
Mounting Type: Free Hanging (In-Line)
Orientation: A
Termination: Screw
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Current Rating (Amps): 4A
Voltage Rating: 48VAC, 60VDC
Backshell Material, Plating: Zinc Die Cast, Nickel
Contact Material: Copper Zinc
Insert Material: Polyamide (PA66), Nylon 6/6
Material Flammability Rating: UL94 HB
Features: Backshell
Shielding: Shielded
Operating Temperature: -40°C ~ 85°C
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
