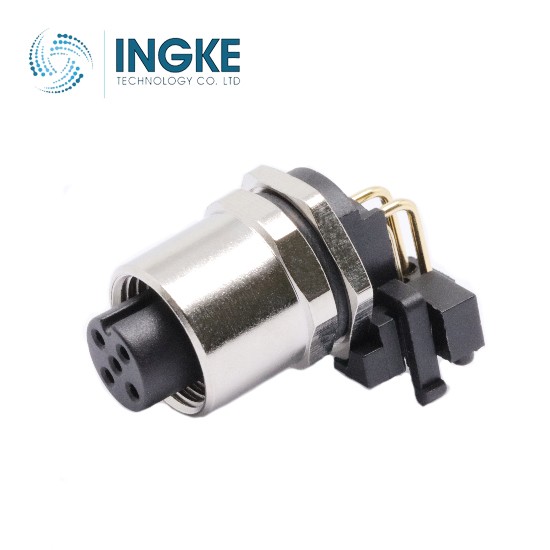

YKM12-PTB3204A MSAS-04PFFR-SF7003 Amphenol LTW

Product Description:
INGKE YKM12-PTB3204A 100% cross MSAS-04PFFR-SF7003 Amphenol LTW

Part No.: MSAS-04PFFR-SF7003 Amphenol LTW
INGKE Part No.: YKM12-PTB3204A
Made in China: INGKE Technology
Description: MSAS-04PFFR-SF7003 M12 Circular Connector
Lead Time: 1-2 Weeks

Connector Type: Plug, Female Sockets
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Contact Material: Copper Alloy
Insert Material: Polybutylene Terephthalate (PBT), Polycarbonate (PC)
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 105°C
Shielding: Shielded
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
