  • YKP08-M103APRH T4040014031-000 TE Connectivity

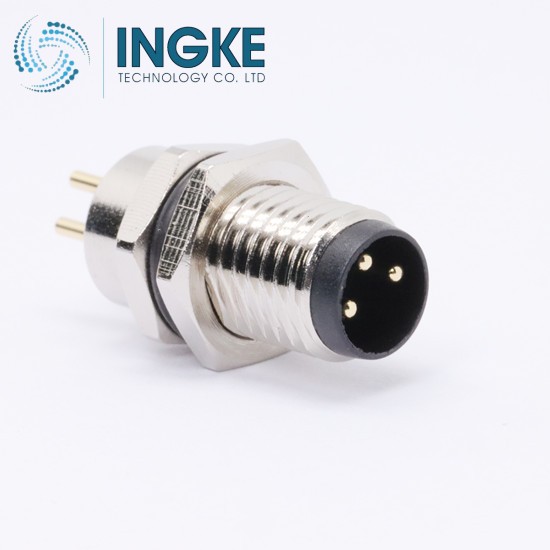

YKP08-M103APRH T4040014031-000 TE Connectivity

Product Description:
INGKE YKP08-M103APRH 100% cross T4040014031-000 TE Connectivity

Part No.: T4040014031-000 TE Connectivity
INGKE Part No.: YKP08-M103APRH
Made in China: INGKE Technology
Description: 1694334 Phoenix Contact M8 Circular Connector
Lead Time: 1-2 Weeks

Categories: Connectors, Interconnects Circular Connectors
Series: M8
Number of Positions: 3
Connector Type: Plug, Male Pins
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Orientation: A
Termination: Solder
Fastening Type: Push-Twist
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Contact Material: Copper Zinc
Insert Material: Polyamide (PA), Nylon
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating: 4A
Voltage Rating: 60V
Operating Temperature: -40°C ~ 85°C
Applications: Automation Control, Industrial, Telecommunications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
