Product Description:
INGKE YKRF-GPSDSF.35.7.A.08 100% cross Taoglas GPSDSF.35.7.A.08 RF Antennas
Part No.: GPSDSF.35.7.A.08 Taoglas
INGKE Part No.: YKRF-GPSDSF.35.7.A.08
Made in China: INGKE Technology

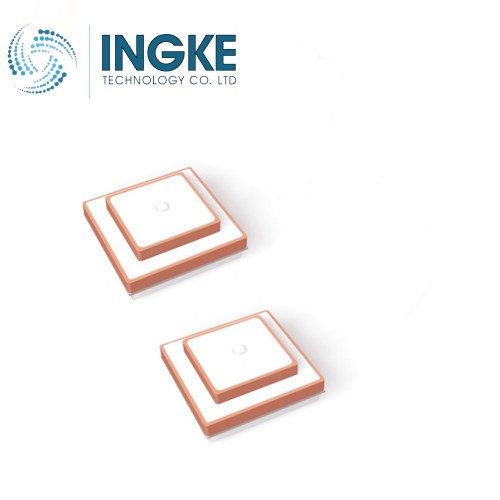

Description: GPSDSF.35.7.A.08 35mm GNSS SDARS Stacked Patch Antenna
MOQ: 1PCS
Lead Time: 1-2 Weeks
Product Category: RF Antennas
Product Type: GNSS Antennas - GPS, GLONASS, Galileo, Beidou
Product: PCB Antennas
Minimum Frequency: 1574.397 MHz
Maximum Frequency: 2345 MHz
Mechanical Style: Patch
Style:Stacked
Gain: 3.4 dBi, 3.6 dBi, 4.7 dBi
Impedance: 50 Ohms
Electrical Type: Embedded
Number of Bands: 3 Band
Mounting Style: Adhesive Mount
Termination Style: Pin
Center Frequency: 1591 MHz, 2338.75 MHz
Length: 35 mm
Width: 35 mm
Height: 7.15 mm
Application: OEM Sharkfin Automotive, Truck Mounted Systems
Operating Temperature: -40°C ~ 85°C
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
