YKB-294-141E 294141-E TE

294141-E TE 100% cross INGKE YKB-294-141E

Part No.: 294141-E TE

Made in China: INGKE Technology

MOQ: 1PCS

Lead Time: within 1-2 week

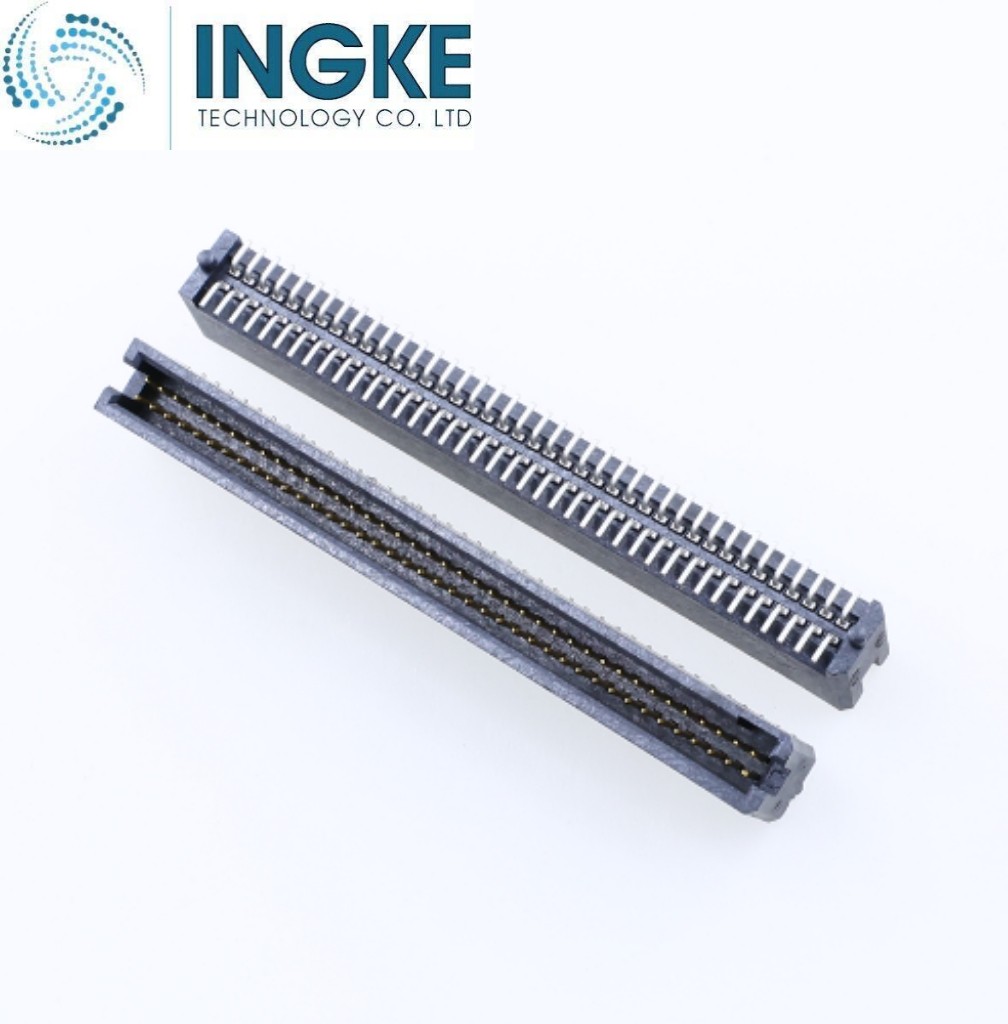

Product: Board to Board Connector

Description: MICROCON M 080POS Q VERT 1MM

Number of Positions: 80

Pitch: 0.031" (0.80mm)

Number of Rows: 2 Row

Mounting Type: Surface Mount

Stack Height: 7 mm, 8 mm, 10 mm, 13 mm, 14 mm

Contact Finish: Glod

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Operating Temperature: -55°C ~ 125°C

Flammability Rating: UL 94 V-0

Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing 294141-E TE Board to Board Connector
