YKB-FDV-1200 LSS-120-02-F-DV-A Samtec

LSS-120-02-F-DV-A Samtec 100% cross INGKE YKB-FDV-1200

Part No.: LSS-120-02-F-DV-A  Samtec

Made in China: INGKE Technology

MOQ: 1PCS

Lead Time: within 1-2 week

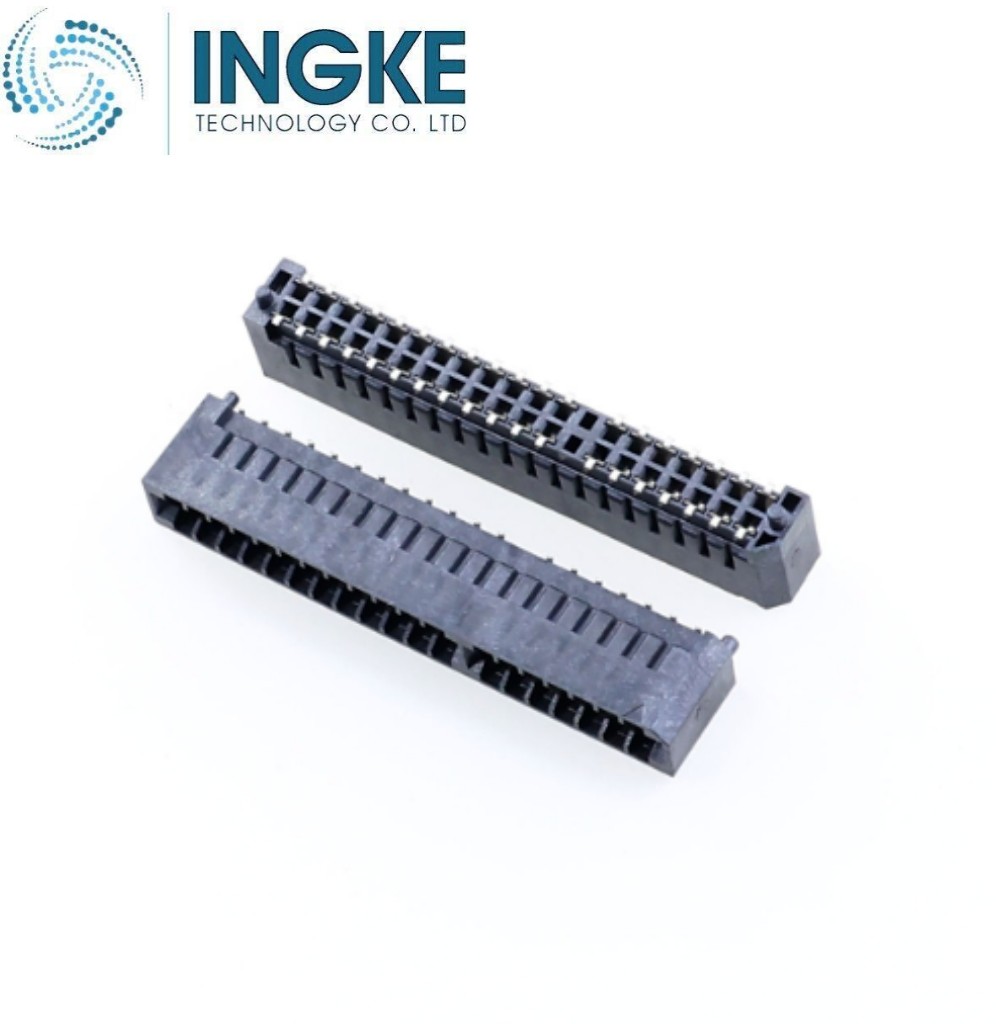

Product: Board to Board Connector

Description: CONN DIFF ARRAY RCP 40P SMD GOLD

Number of Positions: 40

Pitch: 0.020" (0.50mm)

Number of Rows: 2 Row

Mounting Type: Surface Mount

Stack Height: 7 mm, 8 mm, 10 mm, 13 mm, 14 mm

Contact Finish: Glod

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Operating Temperature: -55°C ~ 125°C

Flammability Rating: UL 94 V-0

Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing LSS-120-02-F-DV-A Samtec Board to Board Connector
