YKG-288047NL MTJG-2-88TX1-FSD-PG-LH-NRSP-M47C Adam Tech

INGKE YKG-288047NL 100% compatible with MTJG-2-88TX1-FSD-PG-LH-NRSP-M47C Adam Tech

Part No.: MTJG-2-88TX1-FSD-PG-LH-NRSP-M47C Adam Tech
INGKE Part No.: YKG-288047NL
Made in China: INGKE Technology

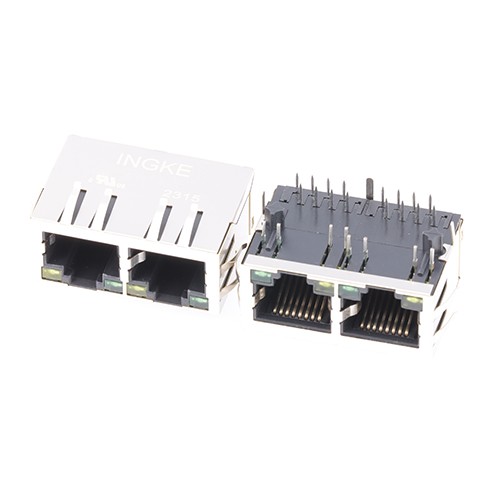

Description: MTJG-2-88TX1-FSD-PG-LH-NRSP-M47C Adam Tech 2 Ports 1G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: Jack
Number of Ports: 2
Number of Rows: 1
Applications: 1G Base-T
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.537" (13.65mm)
LED Color: Green - Yellow
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide, Solder Retention
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Contact Finish Thickness: Flash
Shield Material: Brass, Nickel Coated
Housing Material: Thermoplastic
Categories: Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
