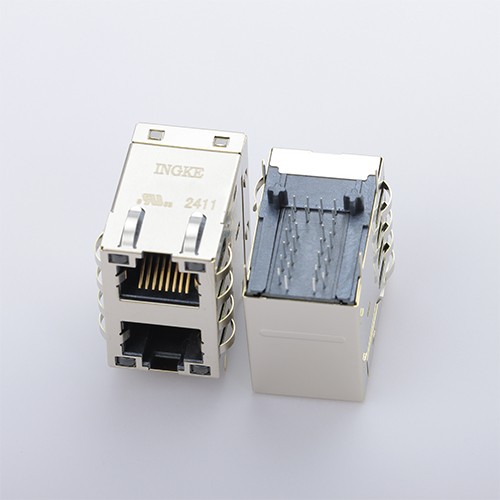

YKG-288268NL MTJG-2-88J11-V-FSG-L36-M268Y Adam Tech

INGKE YKG-288268NL 100% compatible with MTJG-2-88J11-V-FSG-L36-M268Y Adam Tech

Part No.: MTJG-2-88J11-V-FSG-L36-M268Y Adam Tech
INGKE Part No.: YKG-288268NL
Made in China: INGKE Technology
Description: MTJG-2-88J11-V-FSG-L36-M268Y Adam Tech 2 Ports 1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: Jack
Number of Ports: 2
Number of Rows: 2
Applications: 1000 Base-T
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.943" (24.00mm)
LED Color: Green - Green, Orange
Number of Cores per Jack: 6
Shielding: Shielded
Features: Board Lock, Solder Retention
Tab Direction: Up and Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Contact Finish Thickness: Flash
Shield Material: Stainless Steel
Housing Material: Thermoplastic
Categories: Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
