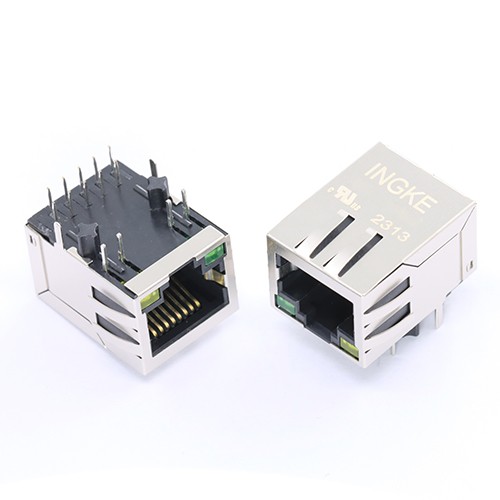

YKGD-72343NL 7-2301994-3 TE Connectivity

INGKE YKGD-72343NL 100% compatible with 7-2301994-3 TE Connectivity

Part No.: 7-2301994-3 TE Connectivity
INGKE Part No.: YKGD-72343NL
Made in China: INGKE Technology
Description: 7-2301994-3 TE Connectivity 1 Port 1G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Type: Magnetic Jack
Gender: Jack (Female)
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded
Performance Category: Cat 5e
Mounting Style: PCB Mount
Mounting Angle: Right Angle
Termination Style: Solder
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
LED L / R Color: Green / Yellow
Application: Wireless Access Points
Contact Material: Copper Alloy
Contact Plating: Gold
Flammability Rating: UL 94 V-0
Mating Cycles: 750 Cycle
Number of Contacts: 8 Contact
Number of Ports: 1 Port
Number of Positions: 8 Position
Tab Direction: Down
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
