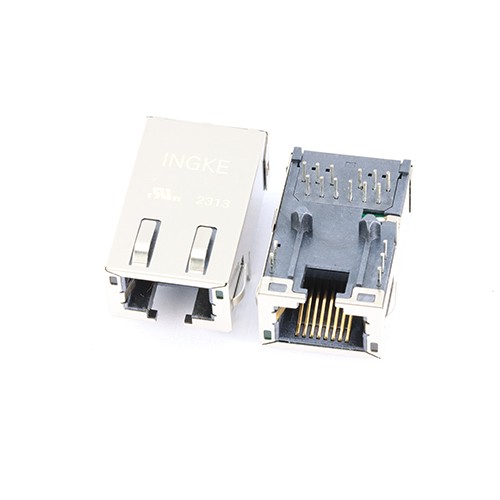

Home Products Single Port RJ45 Connector 1000Base-T RJ45 Connector YKGD-83611NL L836-1JX1-43 Bel Fuse
INGKE YKGD-83611NL 100% compatible with L836-1JX1-43 Bel Fuse
Part No.: L836-1JX1-43 Bel Fuse
INGKE Part No.: YKGD-83611NL
Made in China: INGKE Technology
Description: L836-1JX1-43 Bel Fuse 1 Port 10/100/1000 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.448" (11.38mm)
LED Color: Green, Orange - Yellow
Shielding: Shielded
Features: Board Guide
Tab Direction: Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Contact Finish Thickness: 30.0µin (0.76µm)
Shield Material: Copper Alloy
Housing Material: Polyamide (PA), Nylon
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
