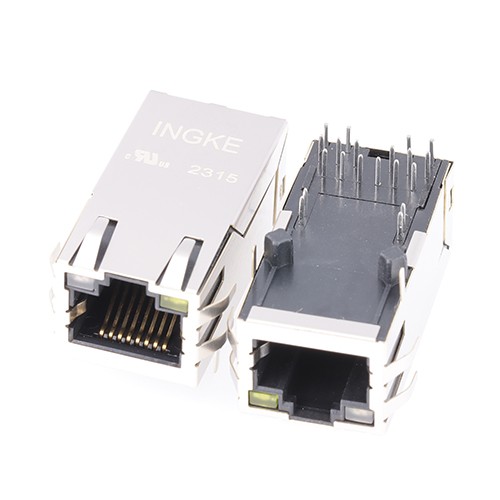

YKGU-06541NL JK0654218ZNL Pulse

INGKE YKGU-06541NL 100% compatible with JK0654218ZNL Pulse

Part No.: JK0654218ZNL Pulse
INGKE Part No.: YKGU-06541NL
Made in China: INGKE Technology
Description: JK0654218ZNL Pulse 1 Port 10/100/1000 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Panel Mount, Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.546" (13.87mm)
LED Color: Yellow, Green - Green
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
