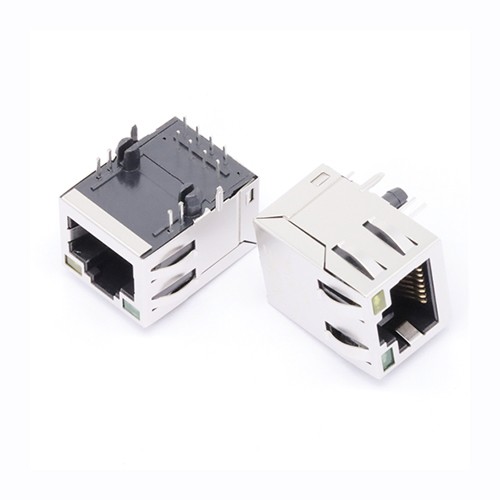

YKGU-10103NL J1L-0103NL Pulse

INGKE YKGU-10103NL 100% compatible with J1L-0103NL Pulse

Part No.: J1L-0103NL Pulse
INGKE Part No.: YKGU-10103NL
Made in China: INGKE Technology
Description: J1L-0103NL Pulse 1 Port 1G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 1G Base-T, AutoMDIX
Mounting Type: Board Edge, Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.376" (9.55mm)
LED Color: Green - Green
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
