  • YKGU-20110NL RJMG2012211A0FR Amphenol ICC

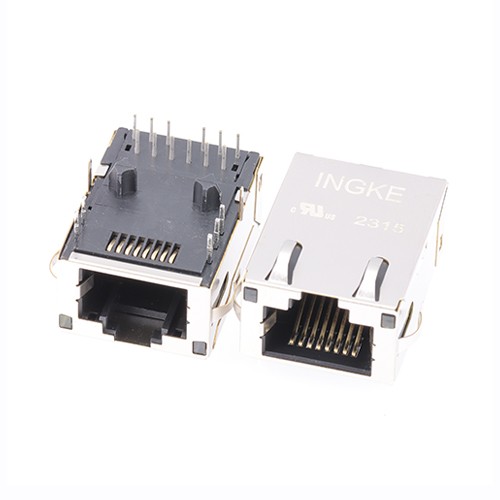

YKGU-20110NL RJMG2012211A0FR Amphenol ICC

Product Description:

INGKE YKGU-20110NL 100% compatible with RJMG2012211A0FR Amphenol ICC

Part No.: RJMG2012211A0FR Amphenol ICC
INGKE Part No.: YKGU-20110NL
Made in China: INGKE Technology
Description: RJMG2012211A0FR Amphenol ICC 1 Port 10/100/1000 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Board Edge, Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.445" (11.30mm)
LED Color: Green - Green
Number of Cores per Jack: 12
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Stainless Steel
Housing Material: Thermoplastic

Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
