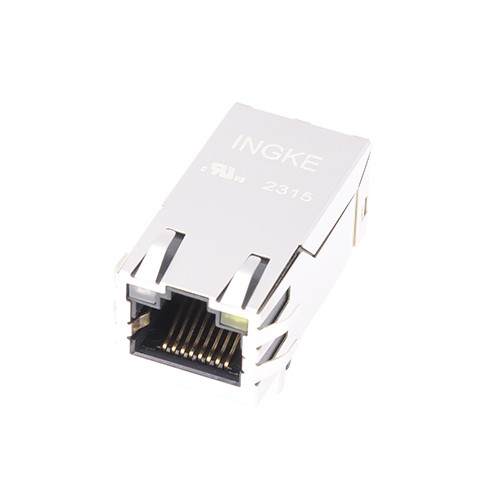

YKGU-23325NL 2337992-5 TE Connectivity

INGKE YKGU-23325NL 100% compatible with 2337992-5 TE Connectivity

Part No.: 2337992-5 TE Connectivity
INGKE Part No.: YKGU-23325NL
Made in China: INGKE Technology
Description: 2337992-5 TE Connectivity 1 Port 1G Base-T, AutoMDIX, PoE
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 1G Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.536" (13.61mm)
LED Color: Green - Yellow
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
