  • YKGU-74901NL 7498111001 Würth Elektronik

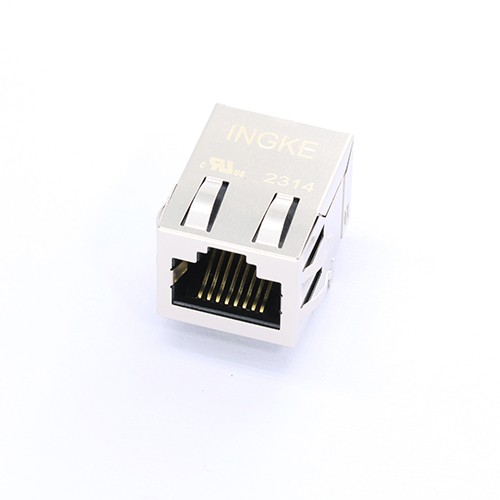

YKGU-74901NL 7498111001 Würth Elektronik

Product Description:

INGKE YKGU-74901NL 100% compatible with 7498111001 Würth Elektronik

Part No.: 7498111001 Würth Elektronik
INGKE Part No.: YKGU-74901NL
Made in China: INGKE Technology
Description: 7498111001 Würth Elektronik 1 Port 10/100/1000 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Surface Mount
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.534" (13.55mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide, Solder Retention
Tab Direction: Up
Contact Material: Tin
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
