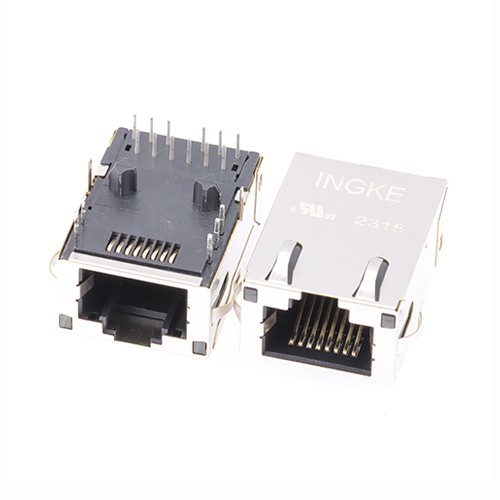

YKGU-74915NL 7499111615 Würth Elektronik

INGKE YKGU-74915NL 100% compatible with 7499111615 Würth Elektronik

Part No.: 7499111615 Würth Elektronik
INGKE Part No.: YKGU-74915NL
Made in China: INGKE Technology
Description: 7499111615 Würth Elektronik 1 Port 10/100/1000 Base-TX, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 2
Number of Rows: 1
Applications: 10/100/1000 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.445" (11.30mm)
LED Color: Green, Orange - Yellow
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Polyamide (PA66), Nylon 6/6

MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
