  • YKGV-20334NL 203346-E TE Connectivity

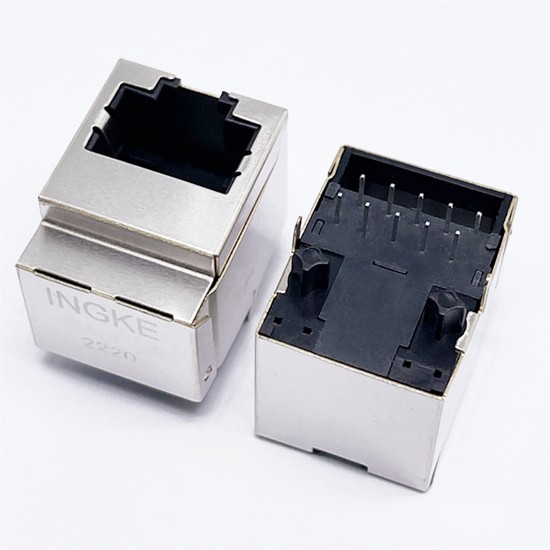

YKGV-20334NL 203346-E TE Connectivity

Product Description:

INGKE YKGV-20334NL 100% compatible with 203346-E TE Connectivity

Part No.: 203346-E TE Connectivity
INGKE Part No.: YKGV-20334NL
Made in China: INGKE Technology
Description: 203346-E TE Connectivity 1 Port 10/100/1000 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Panel Mount, Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.650" (16.51mm)
LED Color: Orange, Green - Orange, Green
Number of Cores per Jack: 8
Shielding: Shielded
Features: Board Guide
Tab Direction: User Selectable
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polyester, Glass Filled
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
