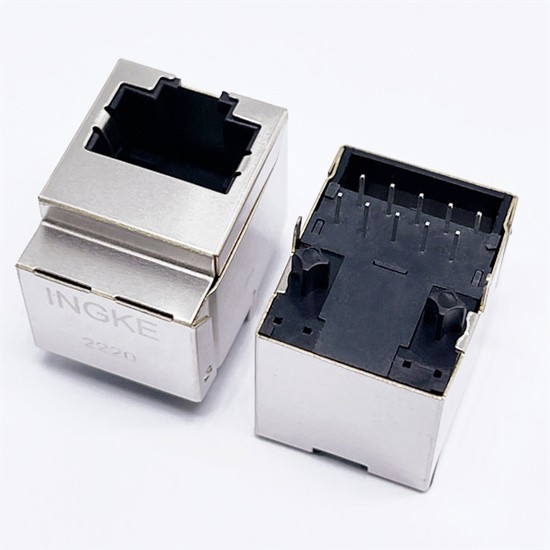

YKGV-74920NL 7499110120A Würth Elektronik

INGKE YKGV-74920NL 100% compatible with 7499110120A Würth Elektronik

Part No.: 7499110120A Würth Elektronik
INGKE Part No.: YKGV-74920NL
Made in China: INGKE Technology
Description: 7499110120A Würth Elektronik 1 Port 10/100/1000 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.665" (16.90mm)
LED Color: Yellow - Green
Number of Cores per Jack: 8
Shielding: Shielded
Features: Board Guide
Tab Direction: User Selectable
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
