YKH-12305NL HX2305NL Pulse

YKH-12305NL HX2305NL Pulse

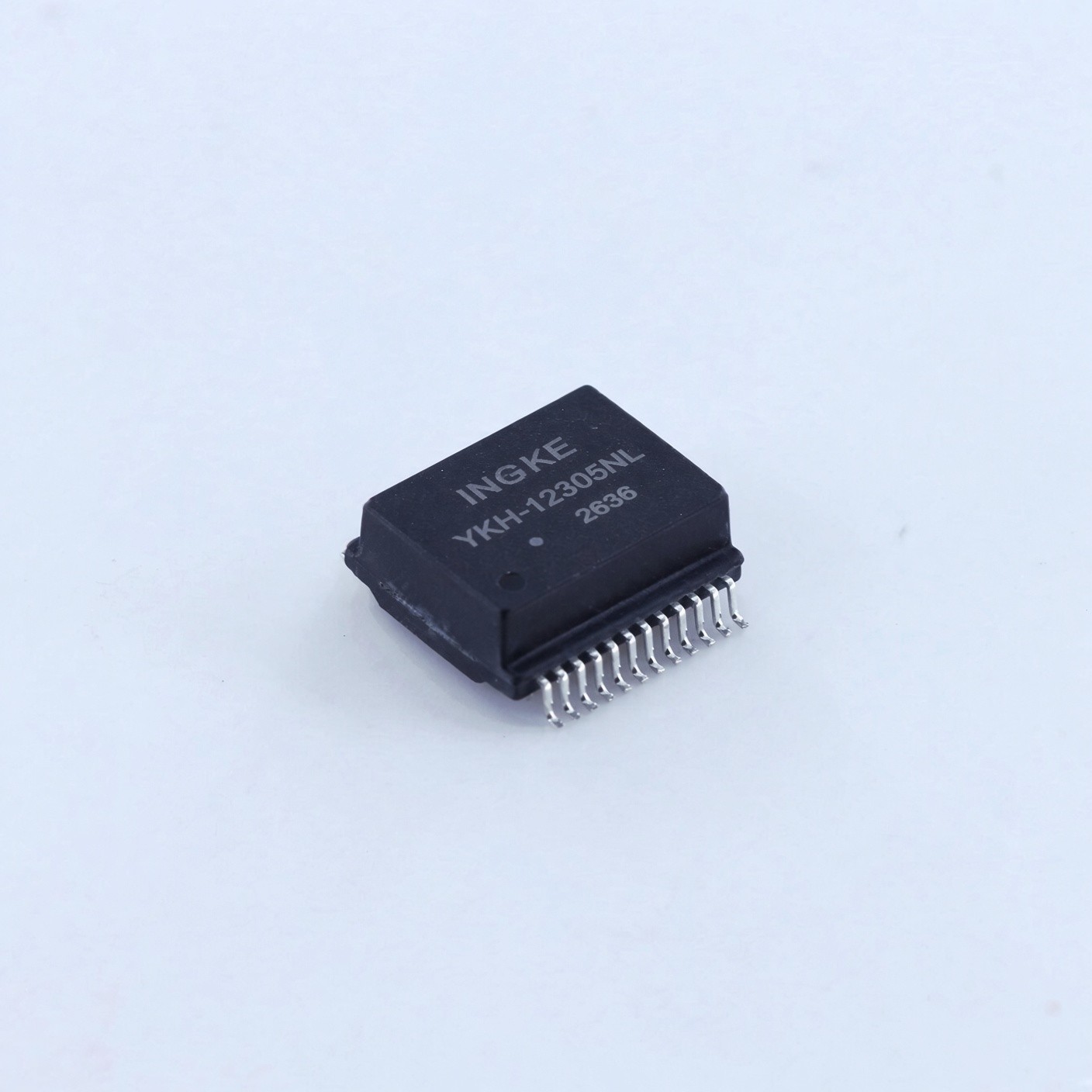

INGKE YKH-12305NL 100% cross HX2305NL Pulse

Part Number: HX2305NL Pulse

INGKE Part Number: YKH-12305NL

Made in China: INGKE Technology

Description: HX2305NL Pulse LAN Transformers

MOQ: 1PCS

Lead Time: within 1 week

Product: LAN Transformers

Termination Style: SMD/SMT

Isolation Voltage: 1.5 kV

Length: 13.16 mm

Width:  15.11 mm

Height: 6.37 mm

Application: 10/100 BASE-T

Operating Temperature: -40°C ~ 125°C

Product Category: Audio Transformers / Signal Transformers

Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing HX2305NL Pulse LAN Transformers
