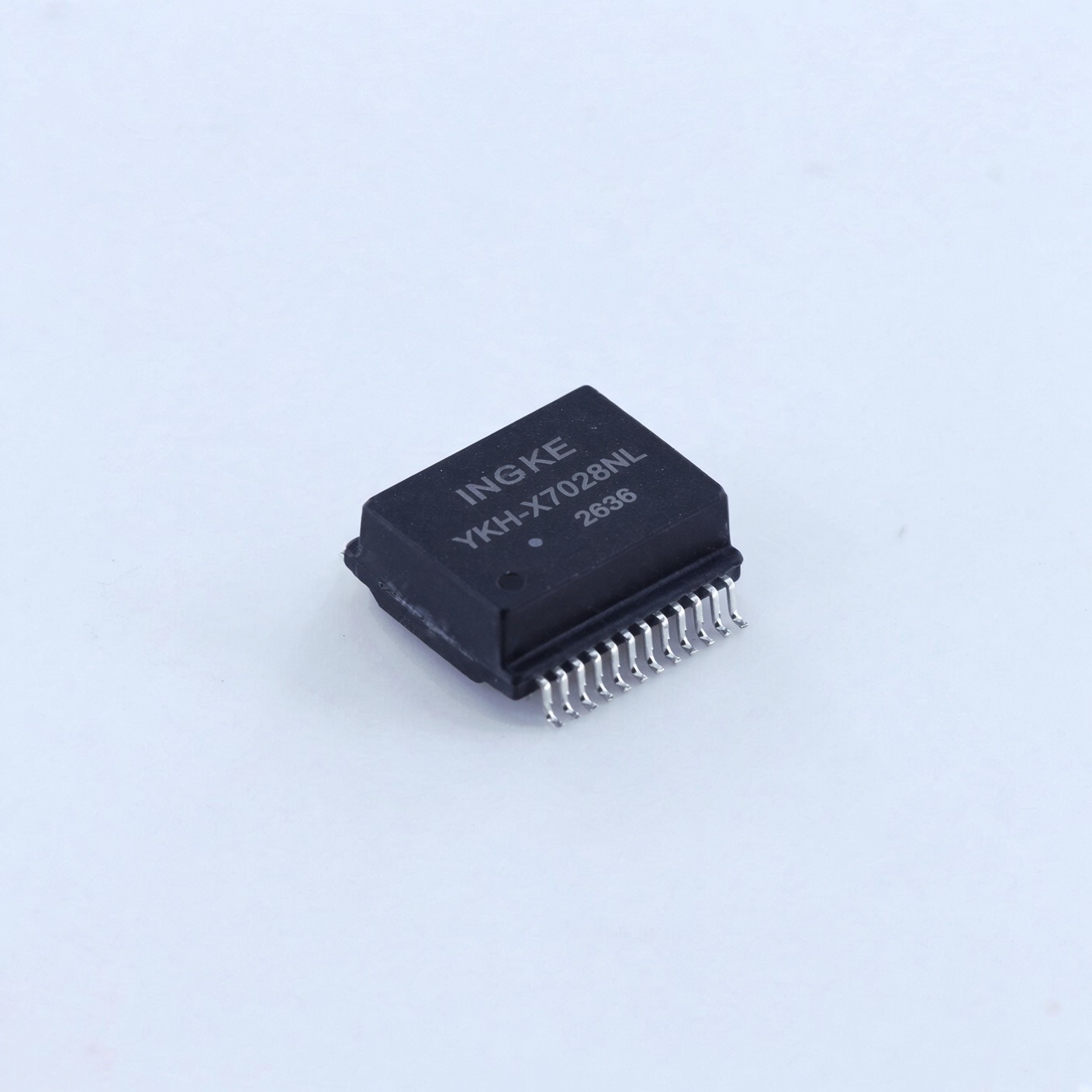

YKH-X7028NL HX7028NL Pulse

INGKE YKH-X7028NL 100% cross HX7028NL Pulse

Part Number: HX7028NL Pulse

INGKE Part Number: YKH-X7028NL

Made in China: INGKE Technology

Description: HX7028NL Pulse LAN Transformers

MOQ: 1PCS

Lead Time: within 1 week

Product: LAN Transformers

Termination Style: SMD/SMT

Isolation Voltage: 1.5 kV

Inductance: 120µH

Length: 13.64 mm

Width: 12.19 mm

Height: 6.35 mm

Application: 10G BASE-T

Operating Temperature: -40°C ~ 125°C

Product Category: Audio Transformers / Signal Transformers

Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing HX7028NL Pulse LAN Transformers
