  • YKJ-631161NL A63-143-300N161 EDAC

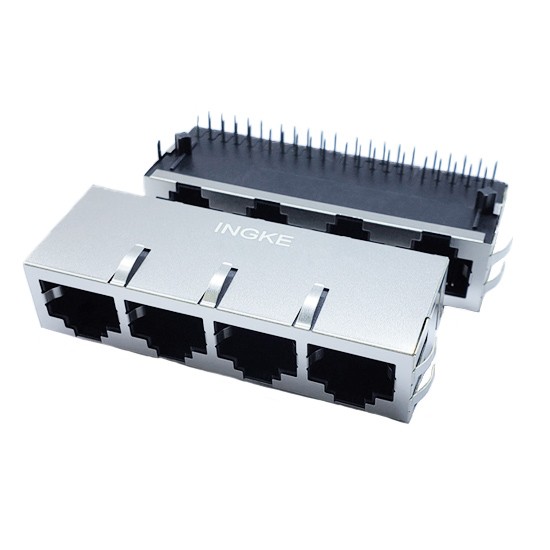

YKJ-631161NL A63-143-300N161 EDAC

Product Description:
INGKE YKJ-631161NL 100% compatible with A63-143-300N161 EDAC

Part No.: A63-143-300N161 EDAC
INGKE Part No.: YKJ-631161NL
Made in China: INGKE Technology
Description: A63-143-300N161 EDAC 4 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.516" (13.11mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded
Features: Board Lock
Tab Direction: Down
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Housing Material: Polyamide (PA), Nylon; Polyester
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
