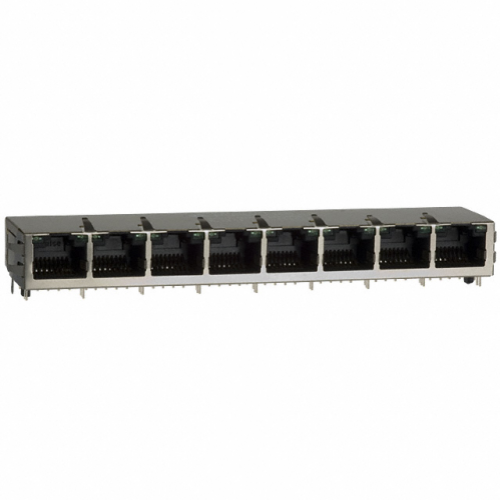

YKJ-661451NL 6610145-1 TE Connectivity

INGKE YKJ-661451NL 100% compatible with 6610145-1 TE Connectivity

Part No.: 6610145-1 TE Connectivity
INGKE Part No.: YKJ-661451NL
Made in China: INGKE Technology
Description: 6610145-1 TE Connectivity 8 Ports 10/100 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Applications: 10/100 Base-T, AutoMDIX
Termination: Solder
Tab Direction: Up
Shielding: Shielded, EMI Finger
Shield Material: Brass
Orientation: 90° Angle (Right)
Operating Temperature: 0°C ~ 70°C
Number of Rows: 1
Number of Ports: 8
Number of Cores per Jack: 4
Mounting Type: Through Hole
LED Color: Does Not Contain LED
Housing Material: Polyethylene Terephthalate (PET), Polyester
Features: Board Lock, Decoupling Capacitance
Contact Material: Phosphor Bronze
Contact Finish: Gold
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
