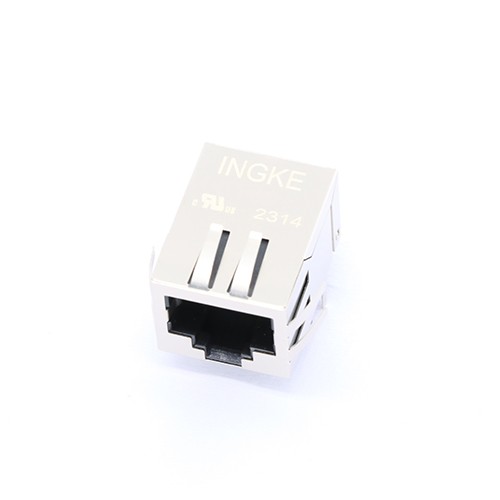

YKJD-08157NL 0813-1X1T-57-F Bel Fuse

INGKE YKJD-08157NL 100% compatible with 0813-1X1T-57-F Bel Fuse

Part No.: 0813-1X1T-57-F Bel Fuse
INGKE Part No.: YKJD-08157NL
Made in China: INGKE Technology
Description: 0813-1X1T-57-F Bel Fuse 1 Port 10/100 Base-T, AutoMDIX, PoE
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.538" (13.66mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 6
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
