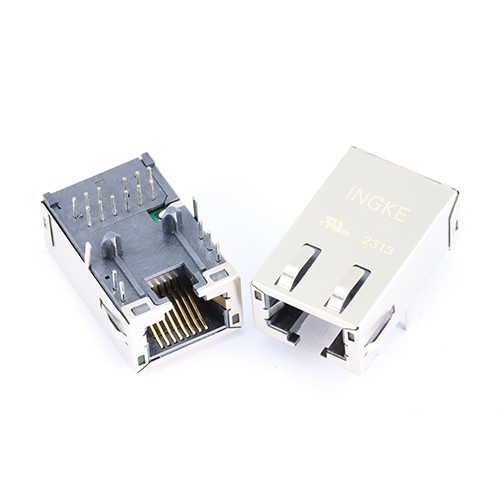

YKJD-18451NL 1840445-1 Bel Fuse

INGKE YKJD-18451NL 100% compatible with 1840445-1 Bel Fuse

Part No.: 1840445-1 Bel Fuse
INGKE Part No.: YKJD-18451NL
Made in China: INGKE Technology
Description: 1840445-1 Bel Fuse 1 Port 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Press-Fit
Height Above Board: 0.439" (11.14mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 5
Shielding: Shielded
Features: Board Guide, Decoupling Capacitance, Light Pipe
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Polyamide (PA), Nylon
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
