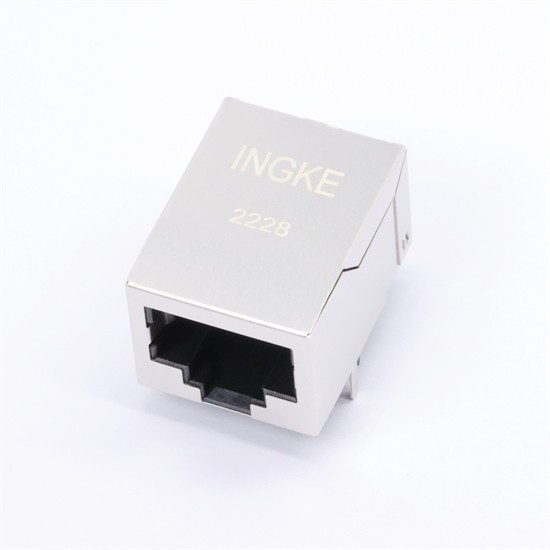

YKJD-61100NL JXD6-1100NL Pulse

INGKE YKJD-61100NL 100% compatible with JXD6-1100NL Pulse

Part No.: JXD6-1100NL Pulse
INGKE Part No.: YKJD-61100NL
Made in China: INGKE Technology
Description: JXD6-1100NL Pulse 1 Port 10/100 Base-TX, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Surface Mount
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.531" (13.49mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded
Features: Board Guide
Tab Direction: Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
