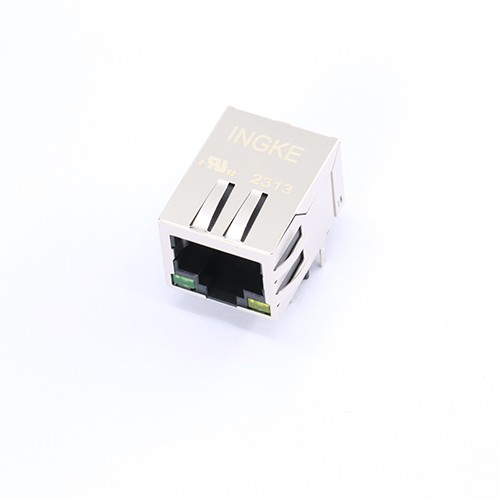

YKJD-71211NL 74990111211 Würth Elektronik

INGKE YKJD-71211NL 100% compatible with 74990111211 Würth Elektronik

Part No.: 74990111211 Würth Elektronik
INGKE Part No.: YKJD-71211NL
Made in China: INGKE Technology
Description: 74990111211 Würth Elektronik 1 Port 10/100 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.549" (13.95mm)
LED Color: Yellow - Green
Number of Cores per Jack: 4
Shielding: Shielded, EMI Fingers
Features: Board Guide
Tab Direction: Down
Contact Material: Tin
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
