  • YKJD-83411NL L834-1G1T-91 Bel Fuse

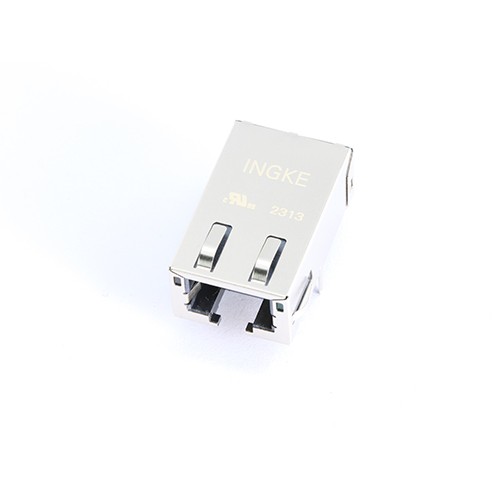

YKJD-83411NL L834-1G1T-91 Bel Fuse

Product Description:

INGKE YKJD-83411NL 100% compatible with L834-1G1T-91 Bel Fuse

Part No.: L834-1G1T-91 Bel Fuse
INGKE Part No.: YKJD-83411NL
Made in China: INGKE Technology
Description: L834-1G1T-91 Bel Fuse 1 Port 10/100 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Board Edge, Cutout; Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.448" (11.38mm)
LED Color: Green - Green
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Down
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)

Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics

MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
