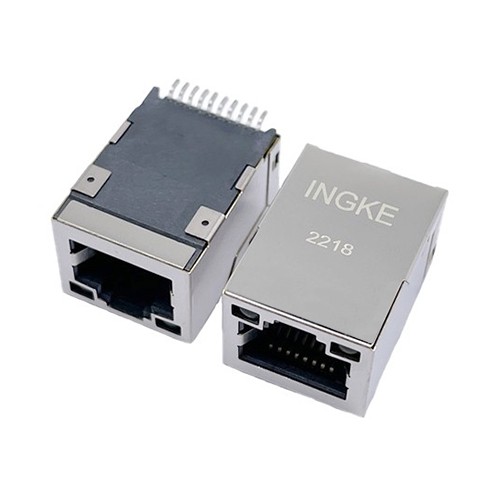

YKJU-60002NL JXD6-0002NL Pulse

INGKE YKJU-60002NL 100% compatible with JXD6-0002NL Pulse

Part No.: JXD6-0002NL Pulse
INGKE Part No.: YKJU-60002NL
Made in China: INGKE Technology
Description: JXD6-0002NL Pulse 1 Port 10/100 Base-TX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 100BaseTX
Mounting Type: Surface Mount
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.549" (13.95mm)
LED Color: Green - Green
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
