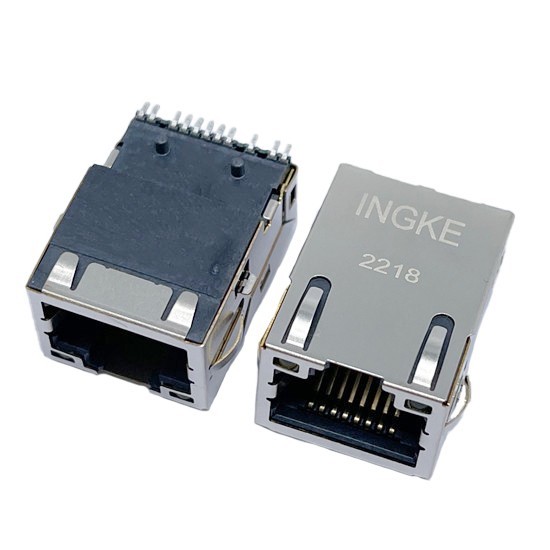

YKJU-74920NL 7498210220A Würth Elektronik

INGKE YKJU-74920NL 100% compatible with 7498210220A Würth Elektronik

Part No.: 7498210220A Würth Elektronik
INGKE Part No.: YKJU-74920NL
Made in China: INGKE Technology
Description: 7498210220A Würth Elektronik 1 Port 10/100 Base-T, AutoMDIX, PoE
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type: Board Edge, Cutout; Surface Mount
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.350" (8.89mm)
LED Color: Green - Green
Number of Cores per Jack: 6
Shielding: Shielded
Features: Board Guide
Tab Direction: Up
Contact Material: Tin
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
