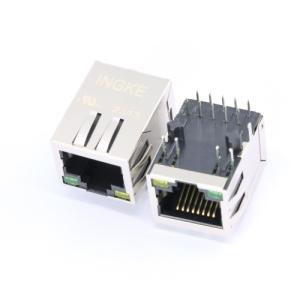

YKJU-81191NL L8BE-1G1T-91A Bel Fuse

INGKE YKJU-81191NL 100% compatible with L8BE-1G1T-91A Bel Fuse

Part No.: L8BE-1G1T-91A Bel Fuse
INGKE Part No.: YKJU-81191NL
Made in China: INGKE Technology
Description: L8BE-1G1T-91A Bel Fuse 1 Port 10/100 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Board Edge, Cutout; Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.346" (8.80mm)
LED Color: Green - Green
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polyamide (PA), Nylon

Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics

MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
