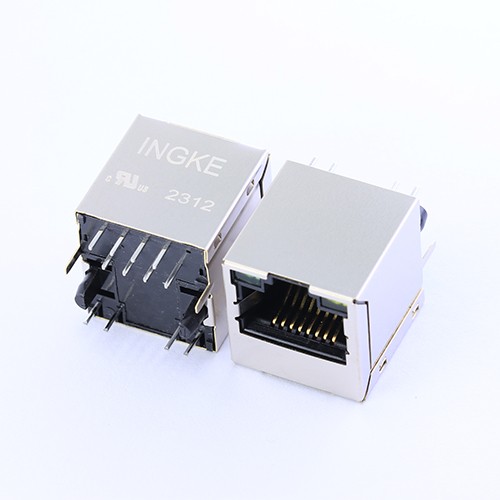

YKJV-52352NL 5-2301995-2 TE Connectivity

INGKE YKJV-52352NL 100% compatible with 5-2301995-2 TE Connectivity

Part No.: 5-2301995-2 TE Connectivity
INGKE Part No.: YKJV-52352NL
Made in China: INGKE Technology
Description: 5-2301995-2 TE Connectivity 1 Port 10/100 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.665" (16.90mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded
Features: Board Lock
Tab Direction: Up
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
