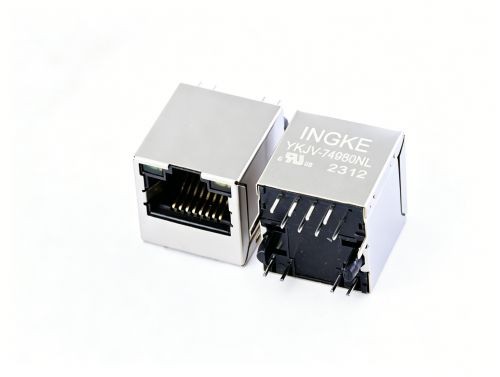

INGKE YKJV-74980NL 74980101200 WE

Product Item : YKJV-74980NL INGKE
Category： Vertical RJ45 Connector
1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX
Replace 74980101200 WE
INQUIRY EMAIL

Product Description:

INGKE YKJV-74980NL 100% compatible with 74980101200 WE

Part No.: 74980101200 WE
INGKE Part No.: YKJV-74980NL
Made in China: INGKE Technology
Description: 74980101200 WE 1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Part Status:Active
Connector Type:Jack
Number of Positions/Contacts:8p8c (RJ45, Ethernet)
Number of Ports:1

Number of Rows:1

Applications:10/100 Base-T, AutoMDIX
Mounting Type:Through Hole

Orientation:Vertical
Termination:Solder

Shielding:Unshielded

Height Above Board:0.665" (16.90mm)

Features:Board Guide
LED Color:Does Not Contain LED
Tab Direction:User Selectable
Contact Material:Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:30.0µin (0.76µm)

Shield Material:Brass, Nickel Coated

Housing Material:Liquid Crystal Polymer (LCP)
Operating Temperature:-40°C ~ 85°C
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell

Tags: 74980101200 WE，Through Hole Reflow
