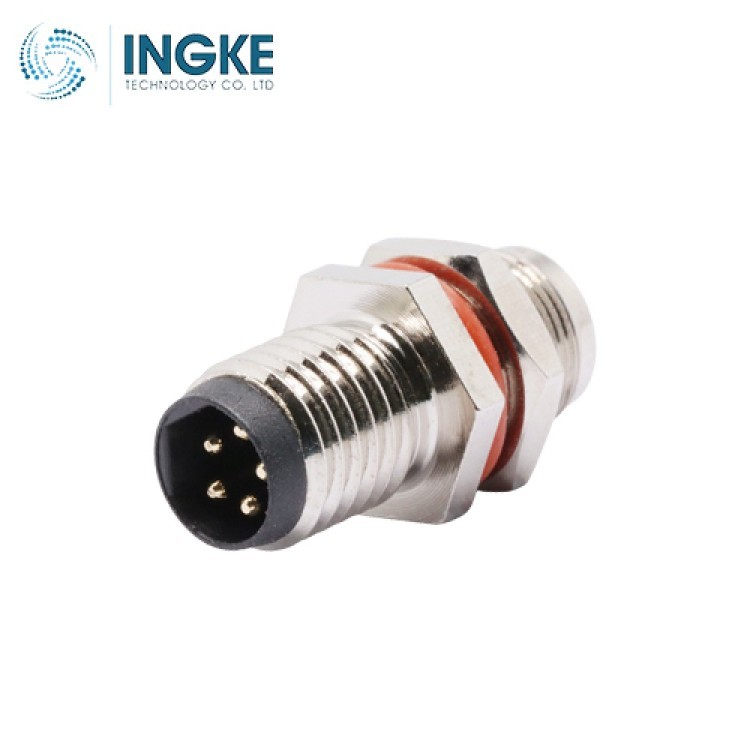

  • YKP08-E105BSRH-200 PXMBNI08RPM05BFL002 Bulgin

YKP08-E105BSRH-200 PXMBNI08RPM05BFL002 Bulgin

Product Description:
INGKE YKP08-E105BSRH-200 100% cross PXMBNI08RPM05BFL002 Bulgin

Part No.: PXMBNI08RPM05BFL002 Bulgin
INGKE Part No.: YKP08-E105BSRH-200
Made in China: INGKE Technology
Description: PXMBNI08RPM05BFL002 Bulgin M8 Circular Connector
Lead Time: 1-2 Weeks

Connector Type: Receptacle, Male Pins
Number of Positions: 5
Shell Size - Insert: M8-5
Mounting Type: Panel Mount
Orientation: B
Mounting Feature Bulkhead - Front Side Nut
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 1.5A
Voltage Rating: 30V
Operating Temperature: -25°C ~ 80°C
Contact Material: Brass
Applications: Industrial Environments
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
