YKRF-03264ST ST0326-40-501-B Amphenol

INGKE YKRF-03264ST 100% cross ST0326-40-501-B Amphenol

Part No.: ST0326-40-501-B Amphenol

INGKE Part No.: YKRF-03264ST INGKE

Made in China: INGKE Technology

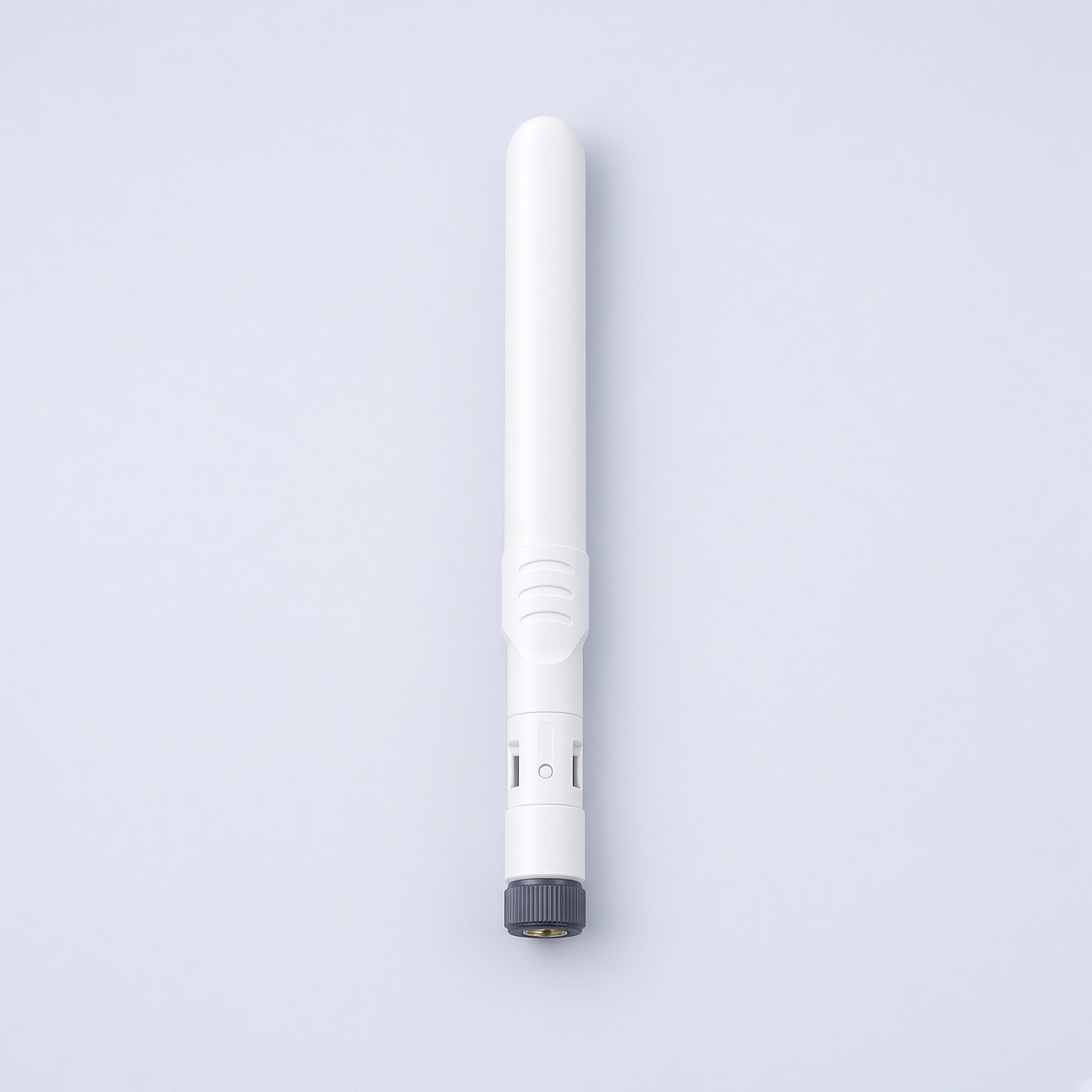

Description: ST0326-40-501-B Amphenol RF ANTENNA EXTERNAL LTE SUB 6GHZ

MOQ: 1PCS

Lead Time: 1-2 Weeks

Category: RF Antennas

Number of Bands: 6

RF Family/Standard: Cellular

Frequency Group: Wide Band

Frequency (Center/Band): 749MHz, 880MHz, 1.94GHz, 2.495GHz, 4.15GHz, 5.5375GHz

Frequency Range: 698MHz ~ 800MHz, 800MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz

Antenna Type: Whip, Right Angle

Return Loss: -7dB, -5dB, -3dB

Gain: 3dBi, 3.2dBi, 3.1dBi, 3.2dBi, 5.5dBi, 5.5dBi

Power - Max: 1 W

Termination: RP-SMA

Height (Max): 8.661" (220.00mm)

Mounting Type: Connector Mount

Application: OEM Sharkfin Automotive, Truck Mounted Systems

Operating Temperature: -40°C ~ 85°C

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing ST0326-40-501-B Amphenol RF Antennas
