YKRF-04281BT ST0428-40-001-B Amphenol

INGKE YKRF-04281BT 100% cross ST0428-40-001-B Amphenol

Part No.: ST0428-40-001-B Amphenol

INGKE Part No.: YKRF-04281BT INGKE

Made in China: INGKE Technology

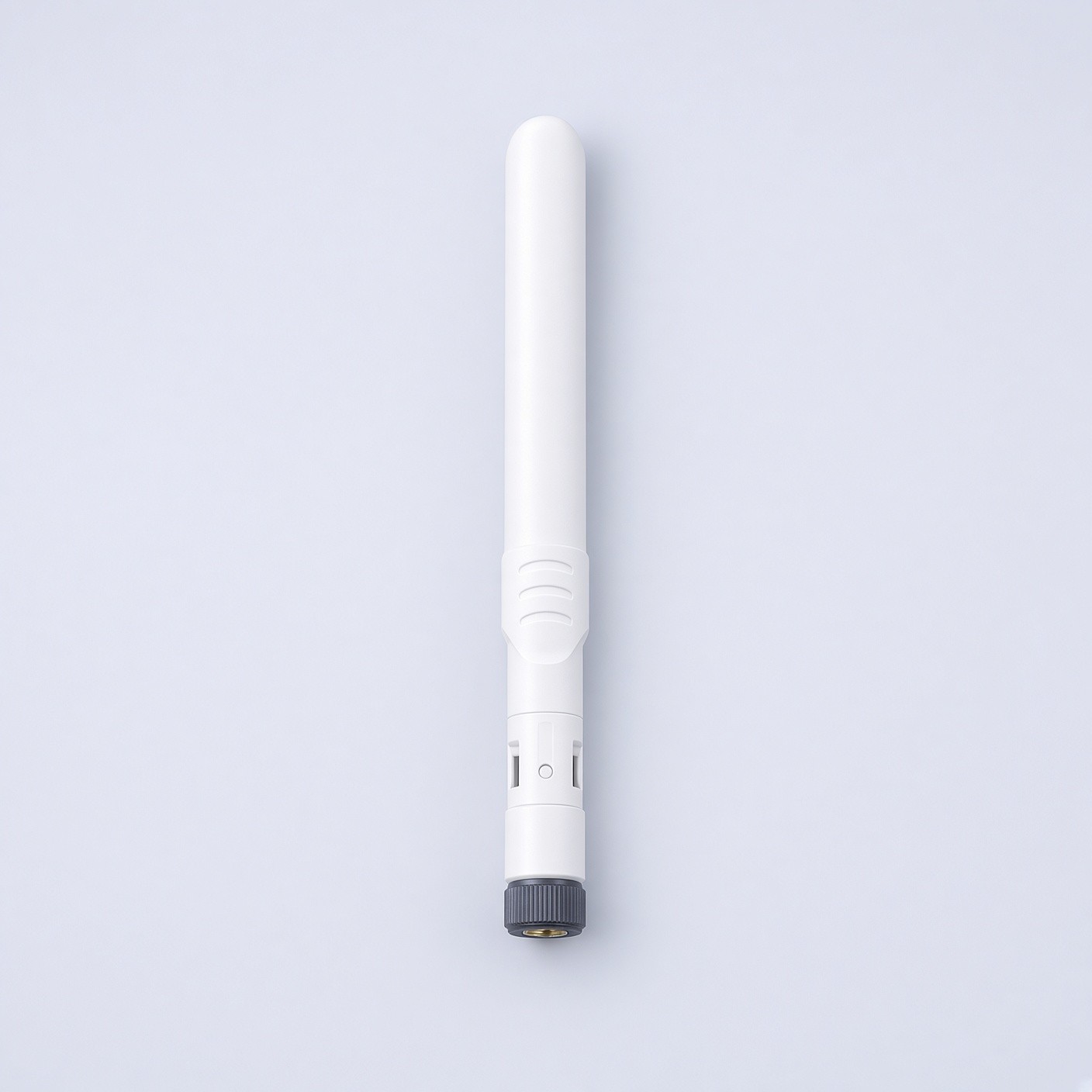

Description: ST0428-40-001-B Amphenol WIDE BAND EXTERNAL RF ANTENNA NB

MOQ: 1PCS

Lead Time: 1-2 Weeks

Category: RF Antennas

Number of Bands: 5

RF Family/Standard: General ISM

Frequency Group: Wide Band

Frequency (Center/Band): 829MHz, 1.94GHz, 2.495GHz, 4.15GHz, 5.538GHz

Frequency Range: 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz

Antenna Type: Whip, Tilt

Return Loss: -6dB

Gain: 4.1dBi, 3.8dBi, 2.9dBi, 4.6dBi, 4.8dBi

Power - Max: 1 W

Termination: SMA

Height (Max): 8.740" (222.00mm)

Mounting Type: Connector Mount

Application: OEM Sharkfin Automotive, Truck Mounted Systems

Operating Temperature: -40°C ~ 85°C

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing ST0428-40-001-B Amphenol RF Antennas
