YKRF-04282ST ST0428-31-002-A Amphenol

INGKE YKRF-04282ST 100% cross ST0428-31-002-A Amphenol

Part No.: ST0428-31-002-A Amphenol

INGKE Part No.: YKRF-04282ST INGKE

Made in China: INGKE Technology

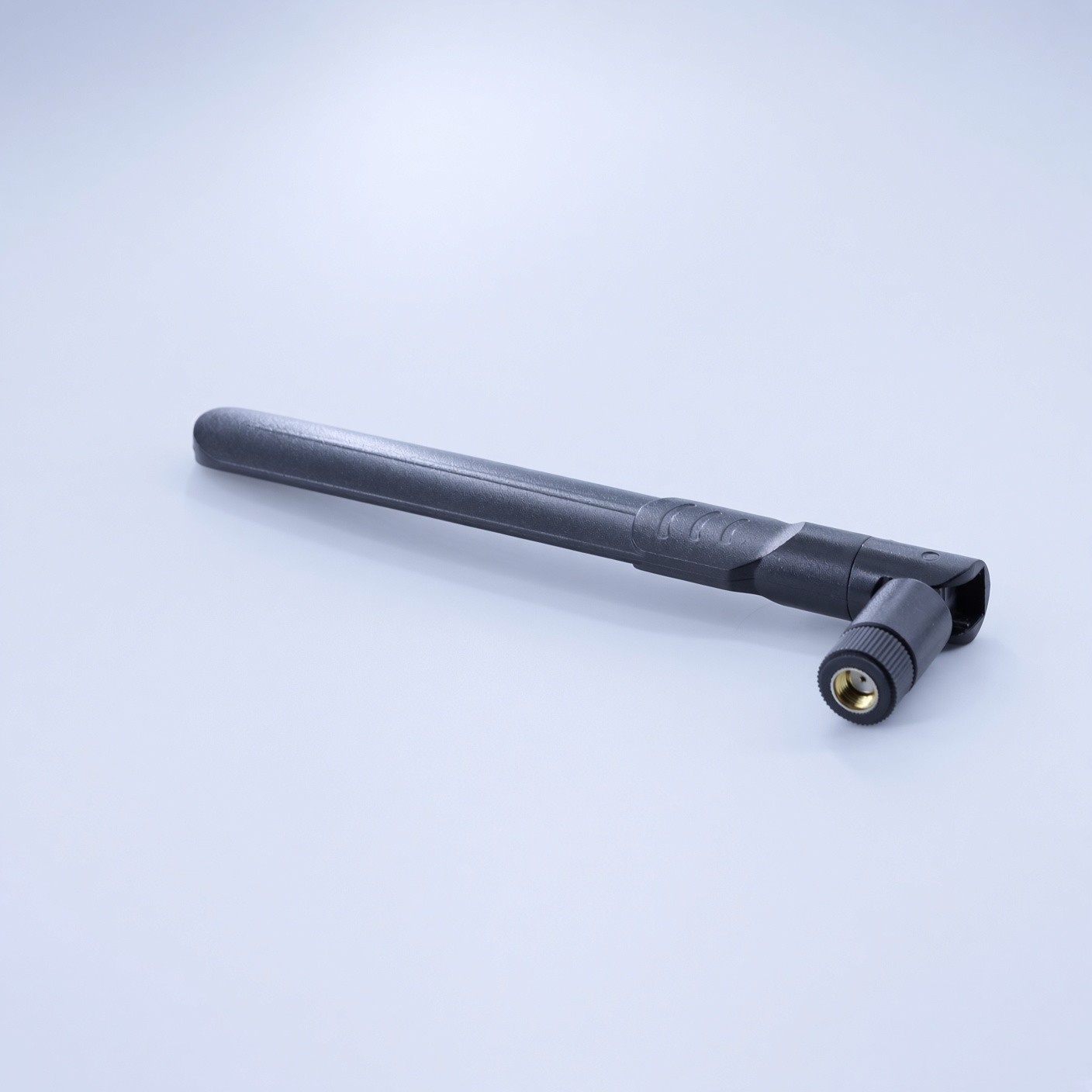

Description: ST0428-31-002-A Amphenol RF ANTENNA EXTERNAL LTE SUB 6GHZ

MOQ: 1PCS

Lead Time: 1-2 Weeks

Category: RF Antennas

Number of Bands: 5

RF Family/Standard: General ISM

Frequency Group: Wide Band

Frequency (Center/Band): 788.5MHz, 1.47GHz, 2.2GHz, 4.15GHz, 5.5375GHz

Frequency Range: 617MHz ~ 960MHz, 1.42GHz ~ 1.52GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz

Antenna Type: Whip, Right Angle

Return Loss: -7dB, -6dB

Gain: 1.8dBi, 2.2dBi, 3.3dBi, 3dBi, 3.8dBi

Power - Max: 1 W

Termination: SMA

Height (Max): 5.591" (142.00mm)

Mounting Type: Connector Mount

Application: OEM Sharkfin Automotive, Truck Mounted Systems

Operating Temperature: -40°C ~ 85°C

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing ST0428-31-002-A Amphenol RF Antennas
