YKRF-04831ST ST0428-31-501-A Amphenol

INGKE YKRF-04831ST 100% cross ST0428-31-501-A Amphenol

Part No.: ST0428-31-501-A Amphenol

INGKE Part No.: YKRF-04831ST INGKE

Made in China: INGKE Technology

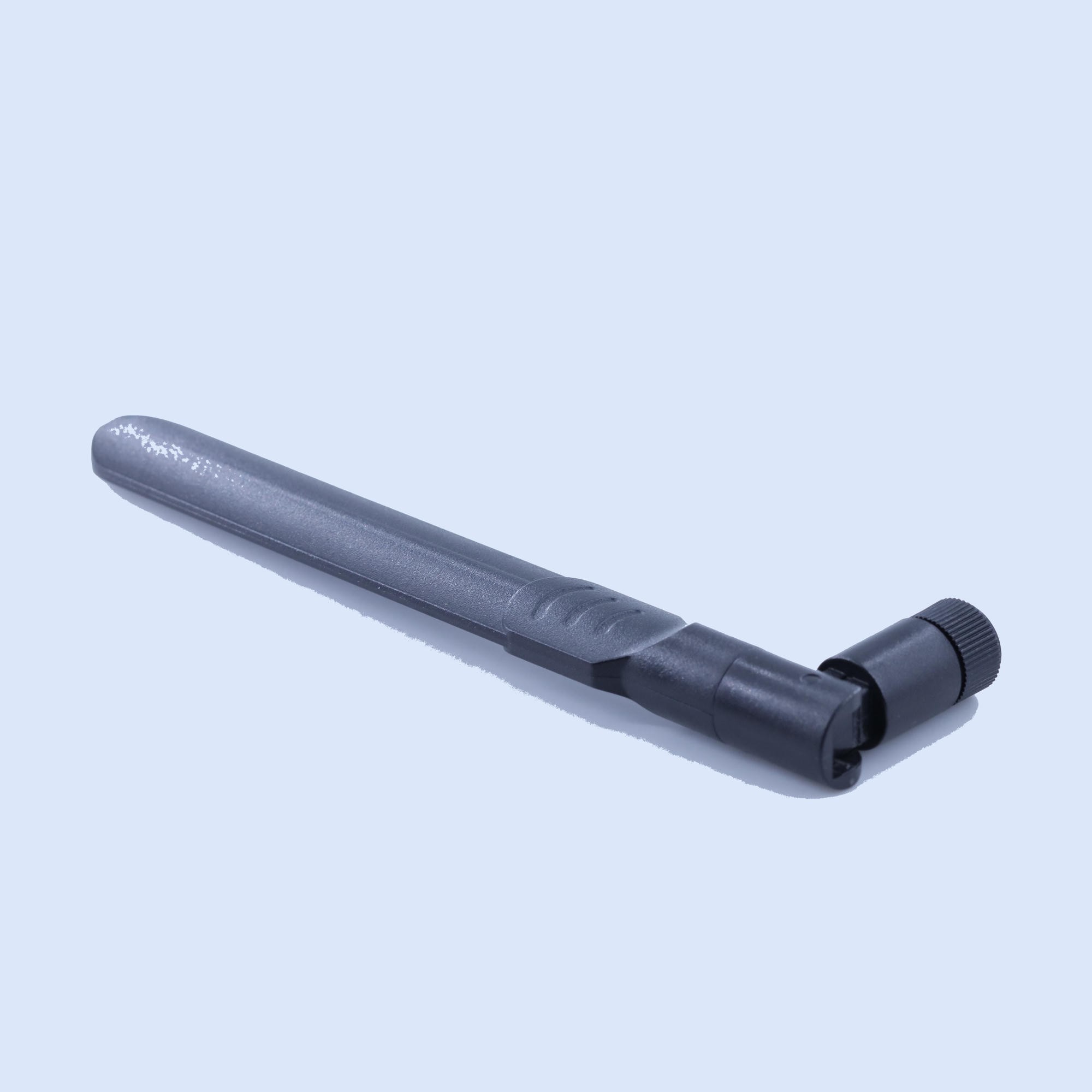

Description: ST0428-31-501-A Amphenol RF ANTENNA STICK RP-SMA PLUG WID

MOQ: 1PCS

Lead Time: 1-2 Weeks

Category: RF Antennas

Number of Bands: 5

RF Family/Standard: Cellular

Frequency Group: Wide Band

Frequency (Center/Band): 825MHz, 1.94GHz, 2.5GHz, 3.55GHz, 5.55GHz

Frequency Range: 690MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz

Antenna Type: Whip, Straight

Return Loss: -10dB, -8dB, -7dB

Gain: 3.7dBi, 4dBi, 3.8dBi, 2.8dBi, 6.1dBi

Power - Max: 1 W

Termination: RP-SMA

Height (Max): 5.256" (133.50mm)

Mounting Type: Connector Mount

Application: OEM Sharkfin Automotive, Truck Mounted Systems

Operating Temperature: -40°C ~ 85°C

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing ST0428-31-501-A Amphenol RF Antennas
